Horizontal 630/500 Fine Wire Drawing Machine / Cable Manufacturing Machine

TF-Ø630mm high speed bunching machine
1.Uses: Suitable for copper wire stranding of electronic wire, computer cable, headphone cable, automobile cable, network cable, electronic enameled wire, etc. Types of copper wire: Stranding of bare copper wire, tinned wire, enameled wire, copper clad aluminum, copper clad steel and other wires. Stranded wire range:10-26AWG
2.Payoff: use the spool ø120-250mm precision moving plate payoff, eccentric wheel type automatically adjusts the tension, mechanical contact detection, automatic disconnection (optional)
3.Take up shaft: standard ABS shaft, outer diameter ø650mm* outer width 375mm* inner width 315mm* aperture ø56mm
4.inter line dia.:ø0.12-1.00mm
5.stranding pitch:11.15-60.24mm 30 different stranding pitch, change the stranding pitc by changing the gear.
(According to customer requirements can be customized to increase the stranding pitc)
6.,Stranded cross-sectional area:Max:6.0mm²
7.Unloading method: manual hydraulic lifting
8.main axis speed:2000r/min(4000rpm)
9.Body: high-quality A3 steel plate welding, processed in strict accordance with the process requirements, not deformed for long-term use.
10.Rotating structure: The main shaft swivel adopts the latest new technical achievements of our company, and the special lubrication of the main shaft bearing type freezes the special lubrication to ensure that the machine reduces the internal temperature and noise of the bearing and the bearing
during high-speed operation, greatly improving the service life of the bearing. And the rotating body is strictly processed by precise dynamic balance to ensure stable operation and meet the requirements of rapid improvement of production efficiency.

electric cable manufacturing machinery

cable wire machine

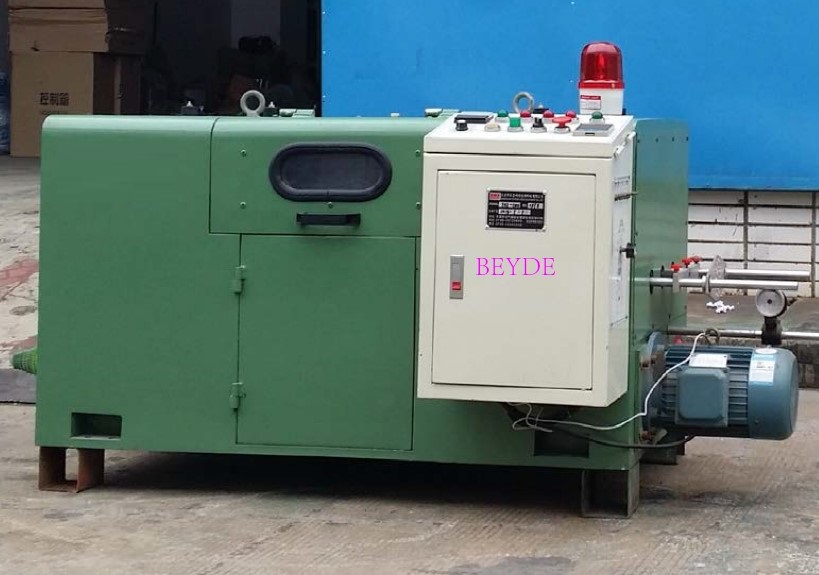

Horizontal 630/500 Fine Wire Drawing Machine / Cable Manufacturing Machine Images
